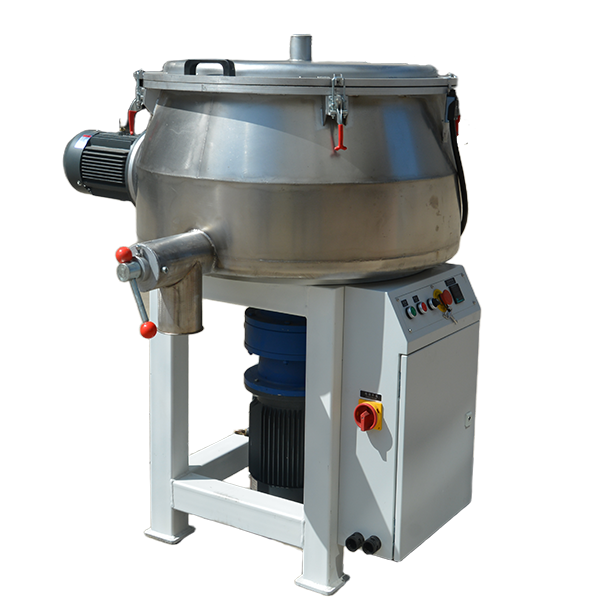

High Speed Mixer
Mixer
MAIN CHARATERISTIC

·Adjustable mixing time,Easy to clean

·Sufficient mixing , Perfect sealing

·High efficient crushing, Easy to operate and maintain


MAIN PARAMETER
Model Volume(L) Capacity(kg/tank) Mixing motor(kw) Crushing motor(kw) Mixing time(min) Mixing speed(rpm) Size(mm)
HPM-0107 150 120 5.5 3 3-5 80 1300*1300*1350
HPM-0315 300 200 7.5 3 3-5 80 1300*1300*1400
HPM-0525 500 300 15 3 3-5 86 2100*1500*1600
HPM-1050 1000 500 22 3*2 3-5 63 2600*2650*1900
OPTIONAL
Open cover modeFlip type (default)
Translational (optional)
Feeding modeManual discharge (default)

Manual shaking of the screw rod pulls out the blocking tray to release the material.

Pneumatic discharge (optional)

The cylinder pulls out the blocking tray to release the material.
