PRODUCTS

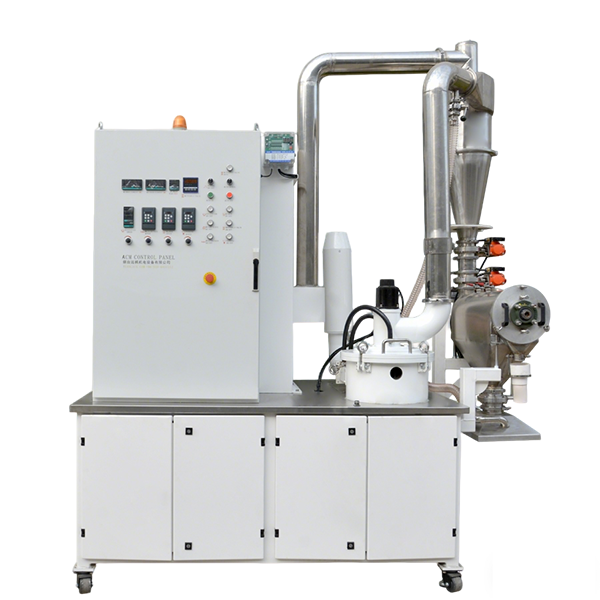

ACM Series Grinding System
Mill
MAIN PARAMETER
| Model | ACM-10 | ACM-15 | ACM-20 | ACM-25 | ACM-30 | ACM-50 | ACM-60 |
|---|---|---|---|---|---|---|---|
| Capacity（kg/h） | 100～160 | 150～200 | 200～300 | 300～400 | 400～500 | 600～800 | 800～1000 |
| Main power (kw) | 7.5 | 11 | 15 | 15 | 22 | 30 | 45 |
| Classifier power (kw) | 1.1 | 2.2 | 2.2 | 2.2 | 3 | 4 | 5.5 |
| Blower power（kw) | 7.5 | 11 | 15 | 22 | 22 | 30 | 45 |
| Air consumption (m3/min) | 30 | 40 | 45 | 60 | 60 | 70 | 90 |
OPTIONAL
| Main mill frequency conversion | (selection) | It can adjust the speed accurately and control the particle size of powder. |
|---|---|---|
| The mute of the main mill | (selection) | Reduce noise of main mill |
| ATEX explosion protection system | (selection) | Reduce security risks
|
| Water separator | (selection) | Reduce the powder temperature and prevent product agglomeration. |
| Filter screen type | Rotary screen (standard) |  |
| Vibrating screen (matching) | Less heat, more loose powder and high yield. | |

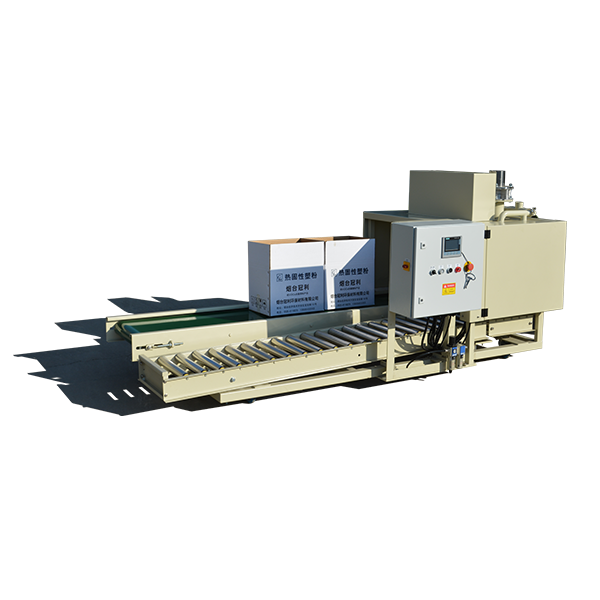

| Weighing method | Semi automatic weighing (matching) |  |
| Full automatic weighing (matching) |  | |
| Dedusting box filtration mode | Bag spring type (standard)） | |
| Cloth bag skeleton type (matching) | Easy disassembly cleaning machine | |
| Filter cartridge (optional) | It is easy to disassemble and clean machine with high filtration precision and high matching requirements. | |
| Super quiet fan | (selection) | Reduce fan noise |
| Auxiliary feeding system | (selection) | Additives for additives
|
